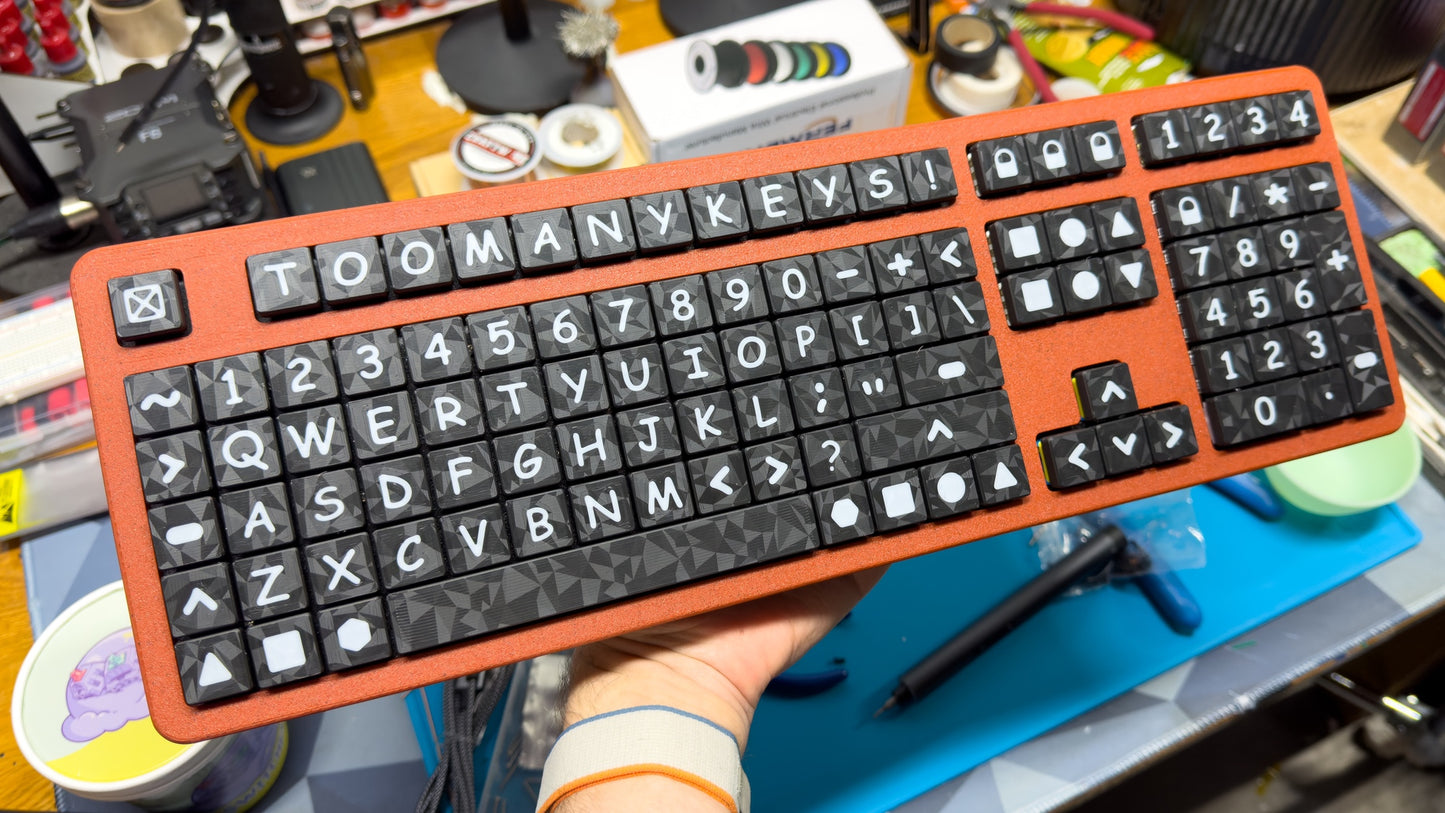

Scotto108 Keyboard Case

The Scotto108 is a 108-key full-sized ortholinear keyboard with a 7u spacebar and 4 macro keys above the numpad.

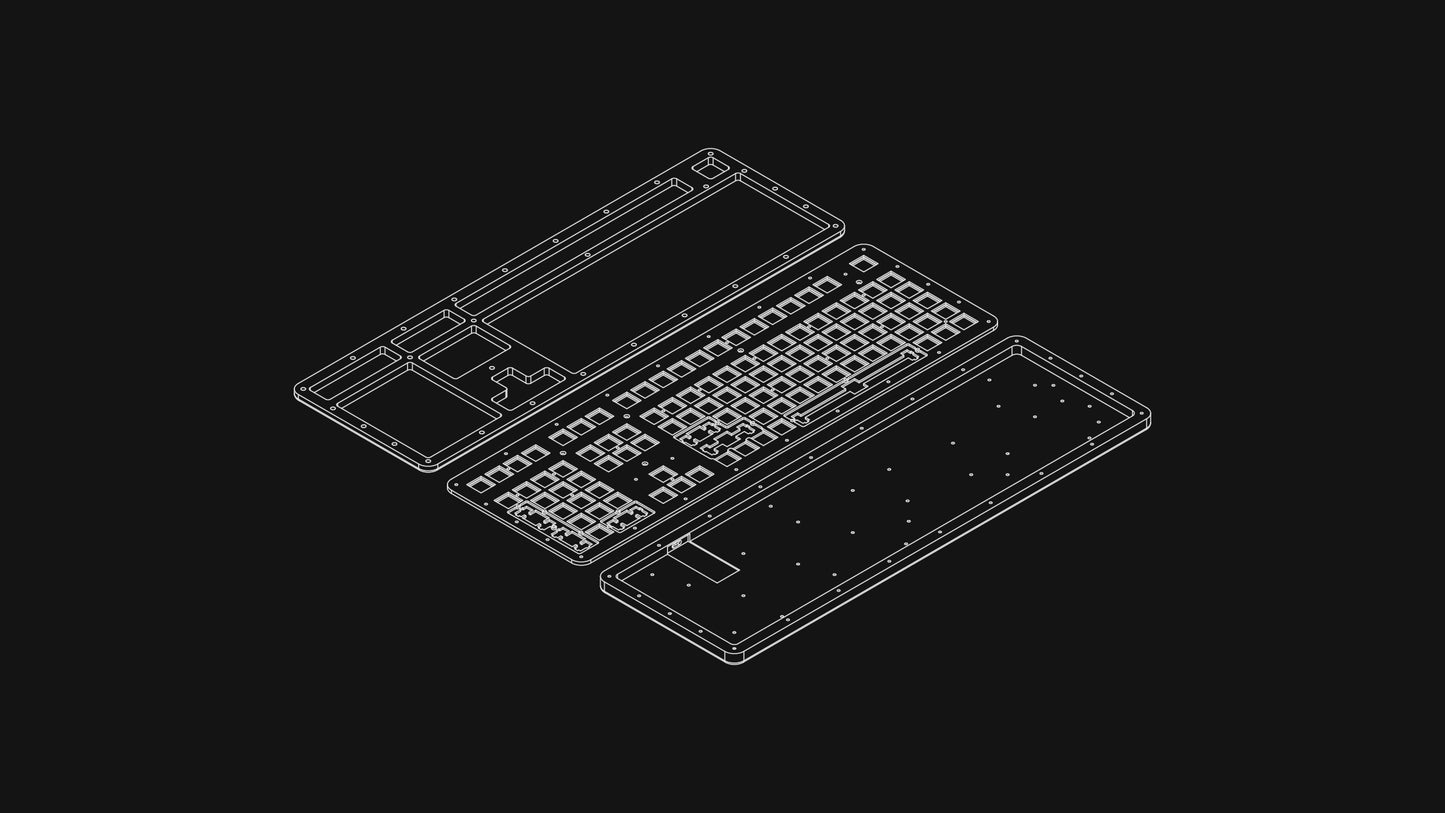

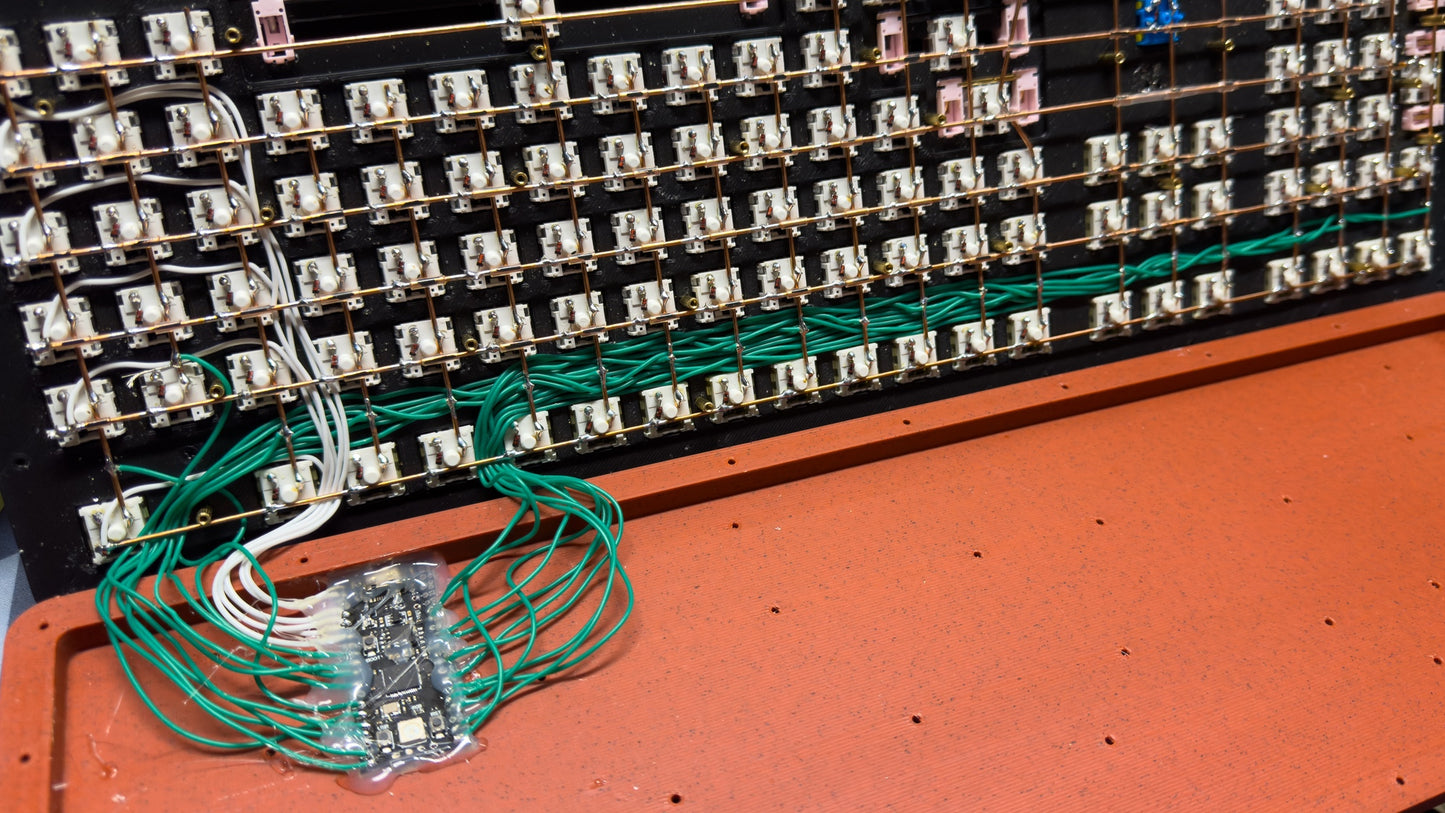

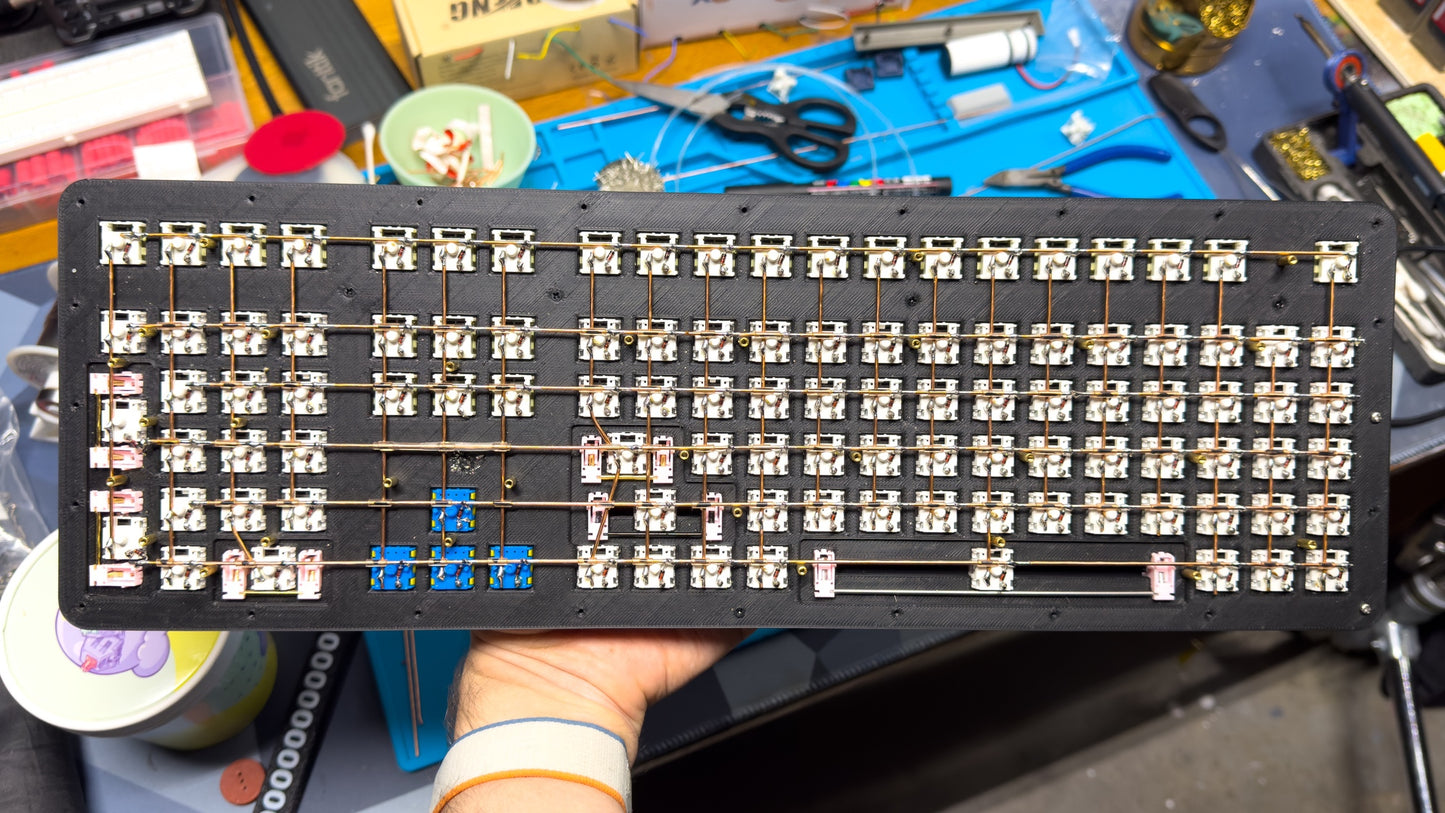

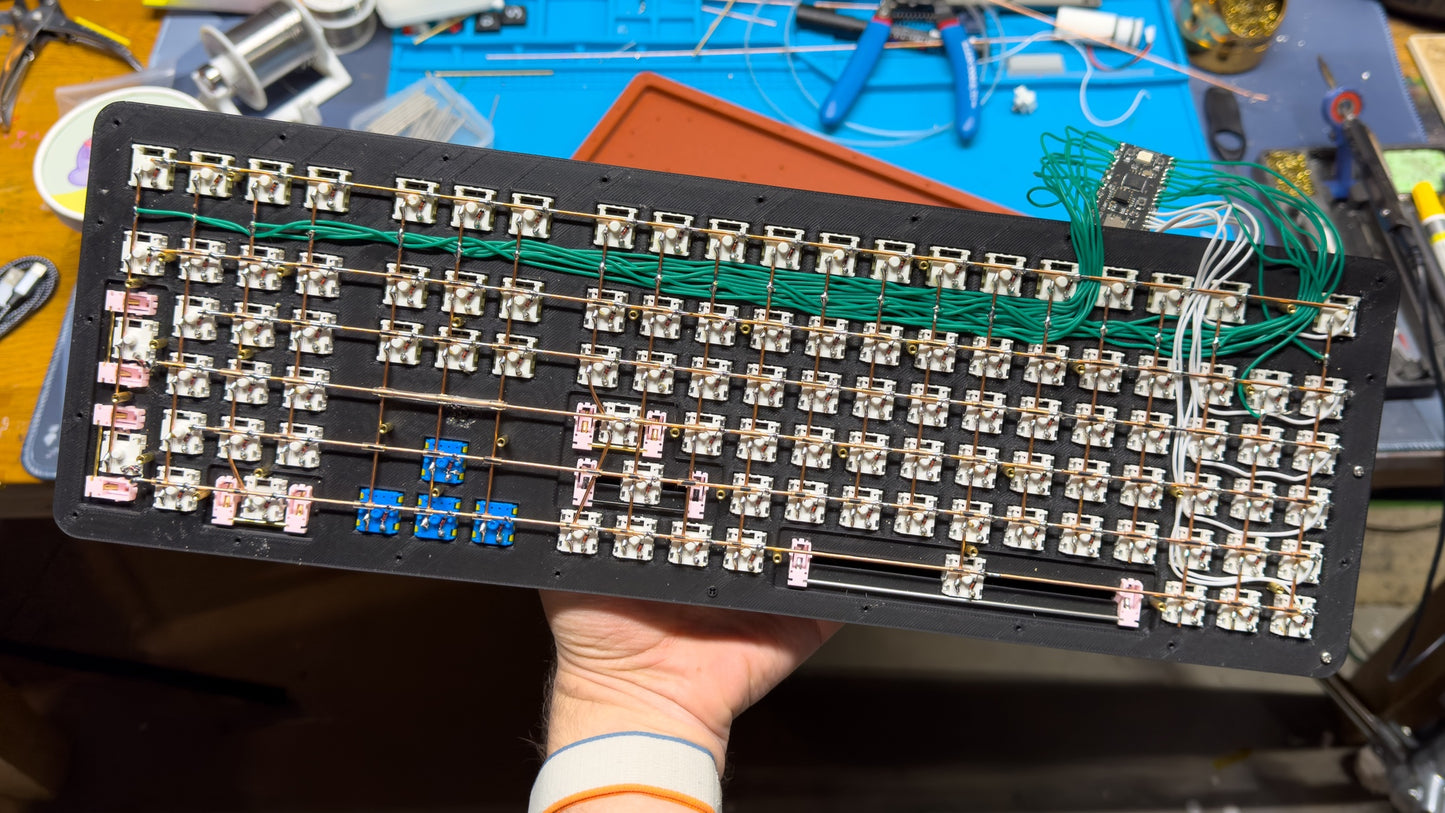

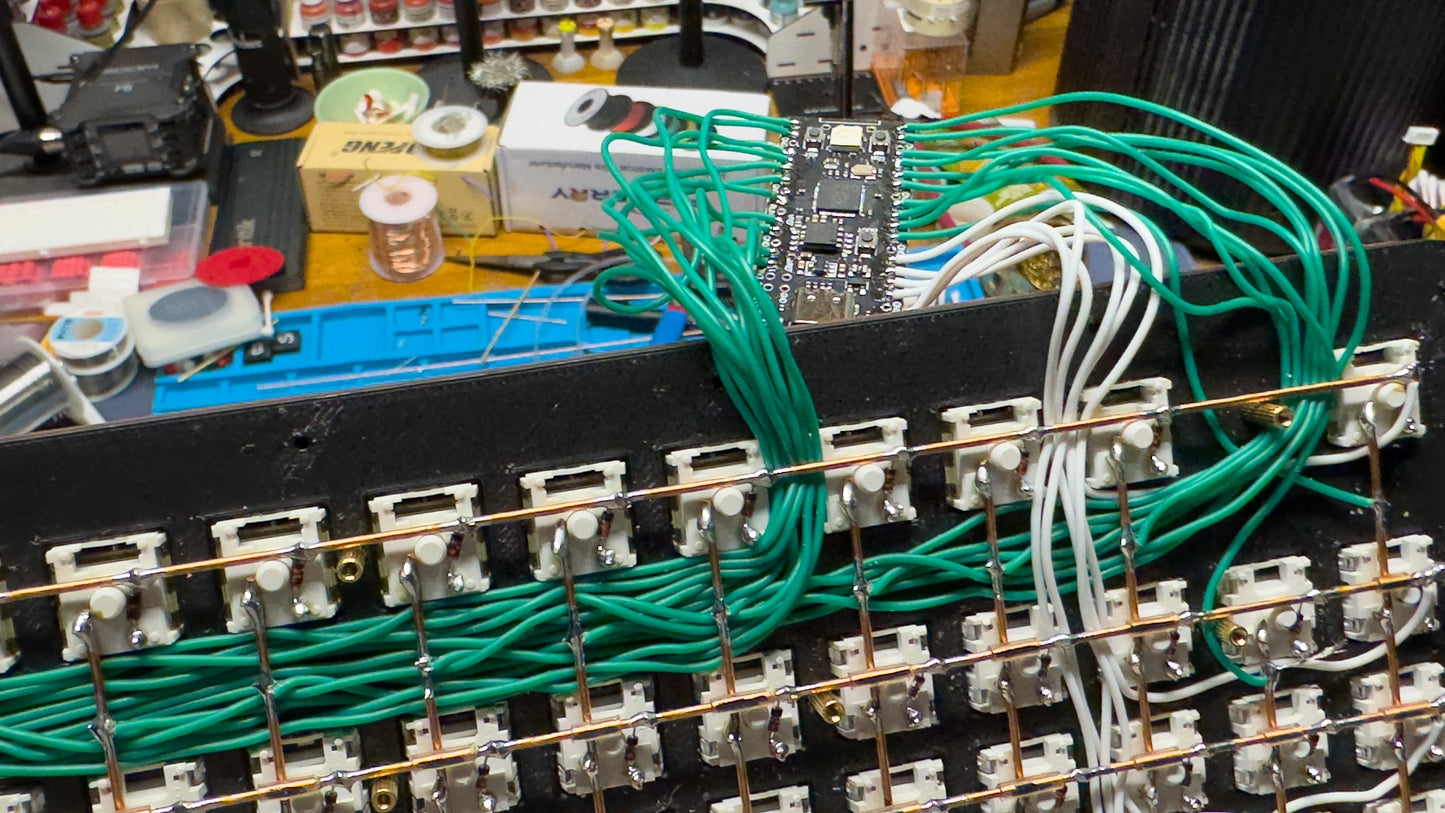

This listing is for a 3D printed case and plate so you can build it yourself. In order to complete the handwired build, you will also need the following:

• 1 Raspberry Pi Pico
• 108 1N4148 diodes
• 58 M2x5mm screws
• 29 M2x10mm screws
• 29 M2 heat set inserts
• 4 2u plate mount stabilizer
• 1 3u plate mount stabilizer
• 1 7u plate mount stabilizer
• 108 MX switches
• 102 1u keycaps
• 4 2u keycap
• 1 3u keycap
• 1 7u keycap

You can read more about the Scotto108 here.

Since this board is multi-color, the plate color is considered the secondary color. For example, this means for "white" the top and bottom will be white with a black middle plate.
